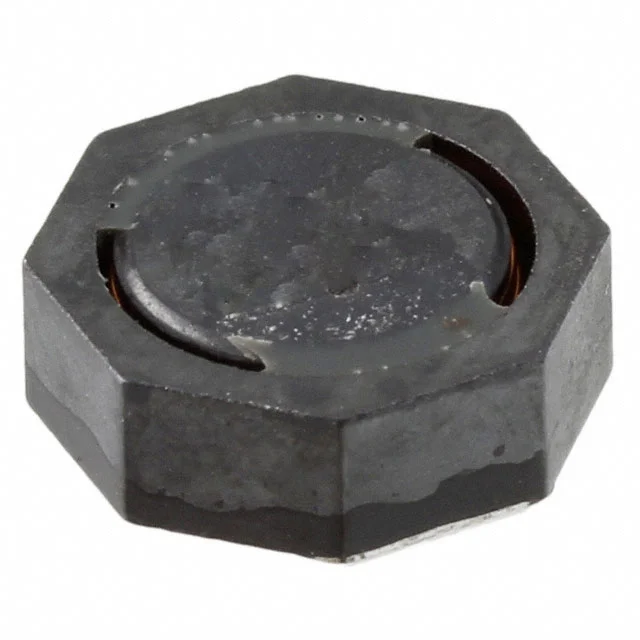

FIXED IND 33UH 1.8A 86 MOHM SMD
| Inductance | 33 µH |
| Tolerance | ±30% |
| Current Rating | 1.8 A |
| DC Resistance (DCR) | 86mOhm Max |
| saturationCurrent | 1.8A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.394" L x 0.394" W (10.00mm x 10.00mm) |
| Case / Size | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 33UH 1.8A 86 MOHM SMD |
| Series | PM104SH |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Shielded |
| qFactor | 22 @ 2.52MHz |
| selfResonantFreq | 10MHz |
| ratings | - |
| testFrequency | 2.52 MHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.161" (4.10mm) |
| features | - |
