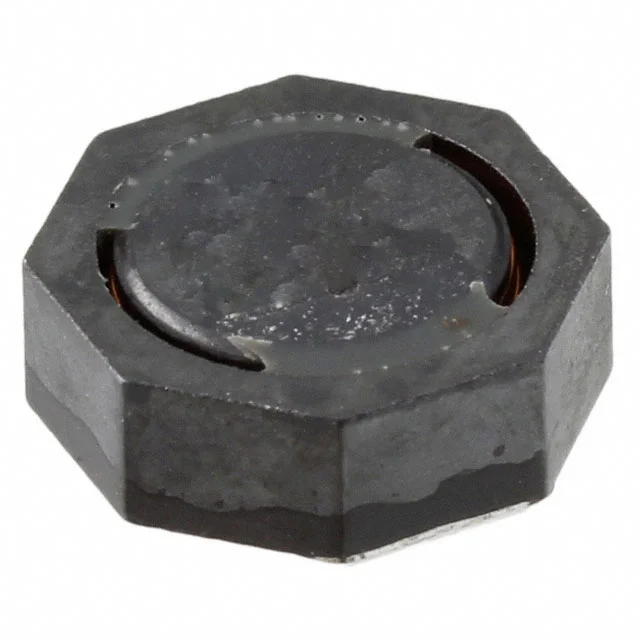

FIXED IND 330UH 550MA 773 MOHM
| Inductance | 330 µH |
| Tolerance | ±30% |
| Current Rating | 550 mA |
| DC Resistance (DCR) | 773mOhm Max |
| saturationCurrent | 520mA |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.394" L x 0.394" W (10.00mm x 10.00mm) |
| Case / Size | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 330UH 550MA 773 MOHM |
| Series | PM104SH |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Shielded |
| qFactor | 20 @ 796kHz |
| selfResonantFreq | 3MHz |
| ratings | - |
| testFrequency | 796 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.161" (4.10mm) |
| features | - |
