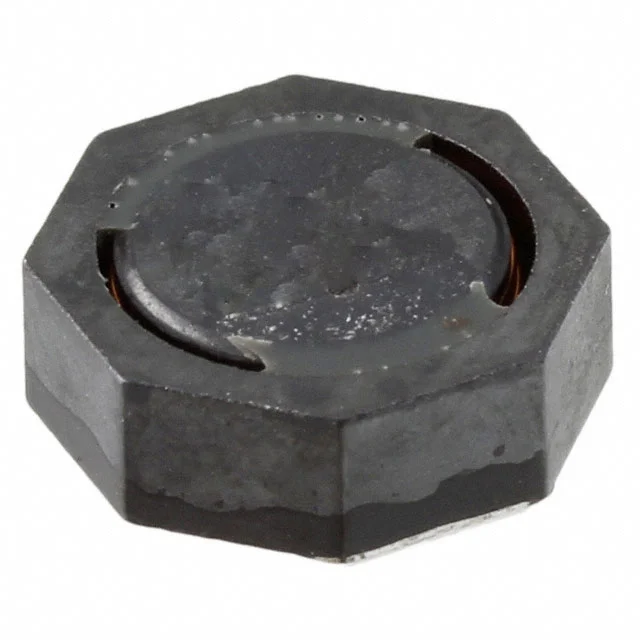

FIXED IND 5.2UH 4.6A 22 MOHM SMD
| Inductance | 5.2 µH |
| Tolerance | ±30% |
| Current Rating | 4.6 A |
| DC Resistance (DCR) | 22mOhm Max |
| saturationCurrent | 4.8A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.394" L x 0.394" W (10.00mm x 10.00mm) |
| Case / Size | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 5.2UH 4.6A 22 MOHM SMD |
| Series | PM104SH |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Shielded |
| qFactor | 12 @ 7.96MHz |
| selfResonantFreq | 30MHz |
| ratings | - |
| testFrequency | 7.96 MHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.161" (4.10mm) |
| features | - |
