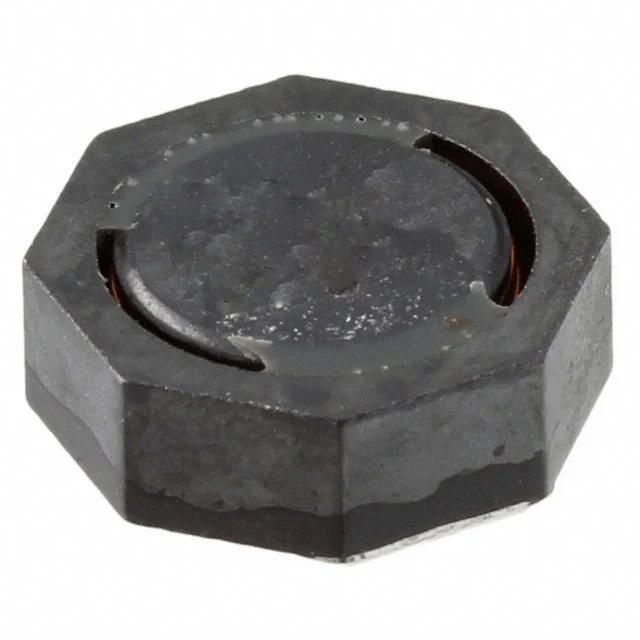

FIXED IND 7UH 3.9A 35 MOHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for PM104SH-7R0-RC.
PM104SH-7R0-RC has an inductance value of 7 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
PM104SH-7R0-RC is rated for 3.9 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
PM104SH-7R0-RC lists a DC resistance of 35mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
PM104SH-7R0-RC uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from PM104SH-7R0-RC to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 7 µH |
| Tolerance | ±30% |
| Current Rating | 3.9 A |
| DC Resistance (DCR) | 35mOhm Max |
| Saturation Current | 4A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.394" L x 0.394" W (10.00mm x 10.00mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 7UH 3.9A 35 MOHM SMD |
| Series | PM104SH |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Shielded |
| Q @ Frequency | 13 @ 7.96MHz |
| Self Resonant Frequency | 36MHz |
| Inductance Test Frequency | 7.96 MHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.161" (4.10mm) |
