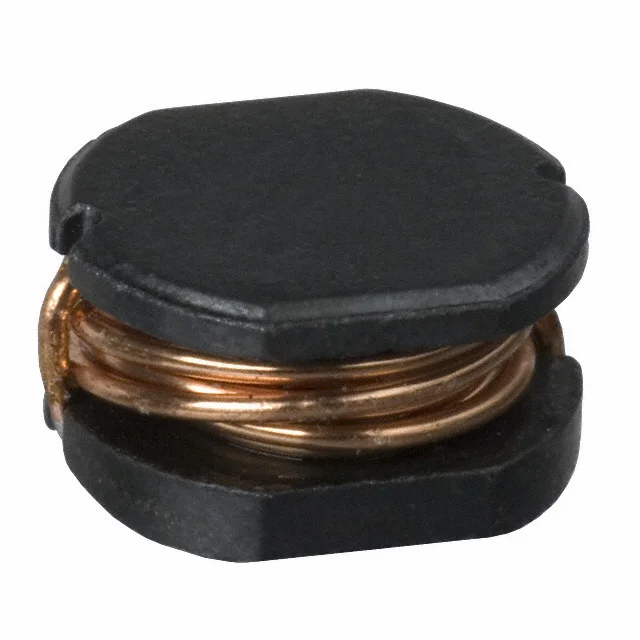

FIXED IND 15UH 2.25A 80 MOHM SMD
| Inductance | 15 µH |
| Tolerance | ±20% |
| Current Rating | 2.25 A |
| DC Resistance (DCR) | 80mOhm |
| saturationCurrent | 4A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.386" L x 0.386" W (9.80mm x 9.80mm) |
| Case / Size | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 15UH 2.25A 80 MOHM SMD |
| Series | PM105 |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Unshielded |
| qFactor | 30 @ 2.52MHz |
| selfResonantFreq | 16MHz |
| ratings | - |
| testFrequency | 1 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.228" (5.80mm) |
| features | - |
