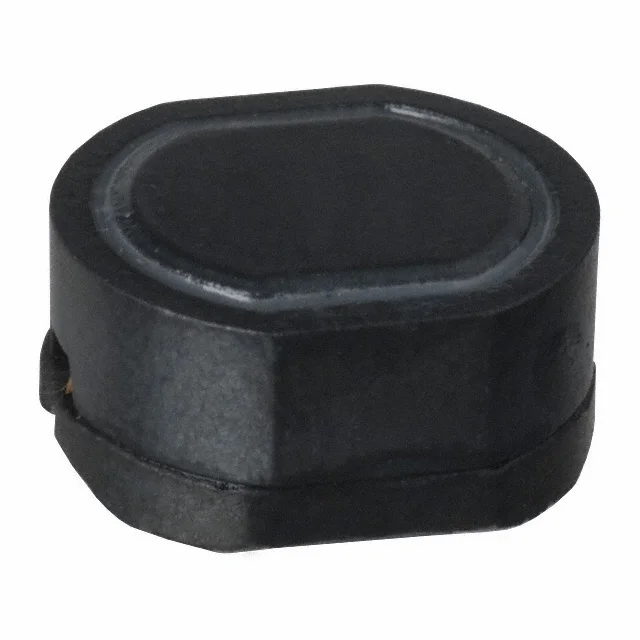

FIXED IND 330UH 440MA 1.03 OHM
| Inductance | 330 µH |
| Tolerance | ±20% |
| Current Rating | 440 mA |
| DC Resistance (DCR) | 1.03Ohm Max |
| saturationCurrent | - |
| Operating Temperature | -30°C ~ 100°C |
| Dimensions | 0.394" L x 0.362" W (10.00mm x 9.20mm) |
| Case / Size | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 330UH 440MA 1.03 OHM |
| Series | PM105S |
| productStatus | Obsolete |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | 4MHz |
| ratings | - |
| testFrequency | 1 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.217" (5.50mm) |
| features | - |
