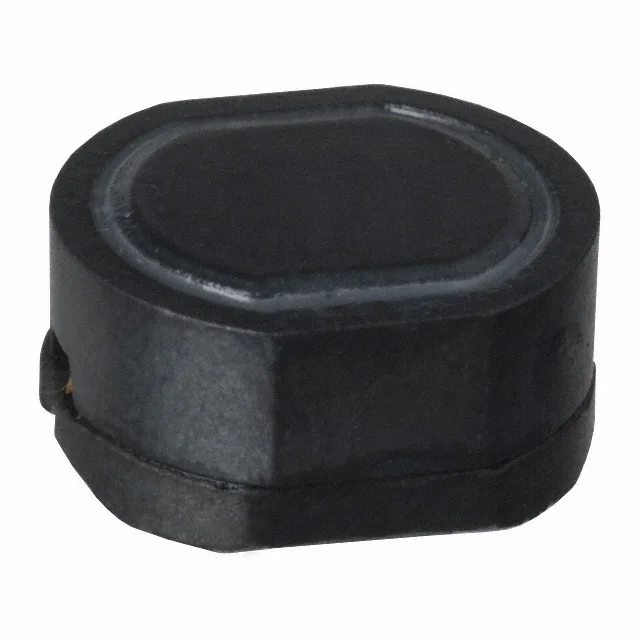

FIXED IND 47UH 1.17A 180 MOHM
| Inductance | 47 µH |
| Tolerance | ±20% |
| Current Rating | 1.17 A |
| DC Resistance (DCR) | 180mOhm Max |
| saturationCurrent | - |
| Operating Temperature | -30°C ~ 100°C |
| Dimensions | 0.394" L x 0.362" W (10.00mm x 9.20mm) |
| Case / Size | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 47UH 1.17A 180 MOHM |
| Series | PM105S |
| productStatus | Obsolete |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | 14MHz |
| ratings | - |
| testFrequency | 2.52 MHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.217" (5.50mm) |
| features | - |
