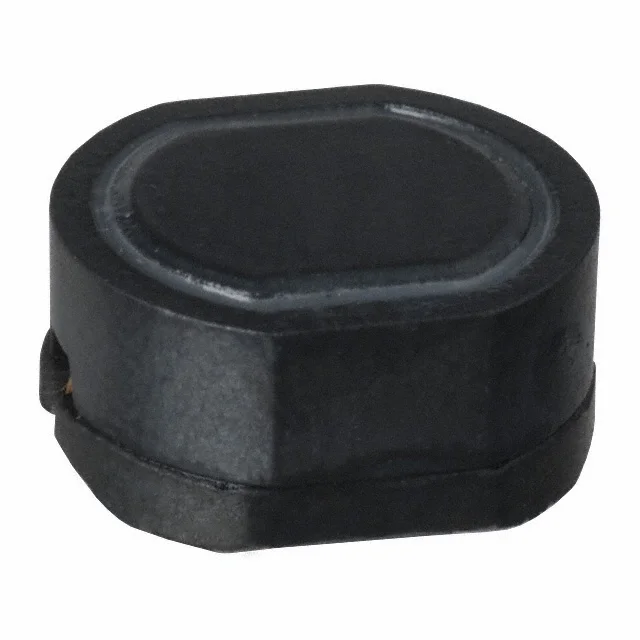

FIXED IND 18UH 1.6A 80 MOHM SMD
| Inductance | 18 µH |
| Tolerance | ±20% |
| Current Rating | 1.6 A |
| DC Resistance (DCR) | 80mOhm Max |
| saturationCurrent | - |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.390" L x 0.390" W (9.90mm x 9.90mm) |
| Case / Size | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 18UH 1.6A 80 MOHM SMD |
| Series | PM105SB |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Shielded |
| qFactor | 39 @ 2.52MHz |
| selfResonantFreq | 21MHz |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.189" (4.80mm) |
| features | - |
