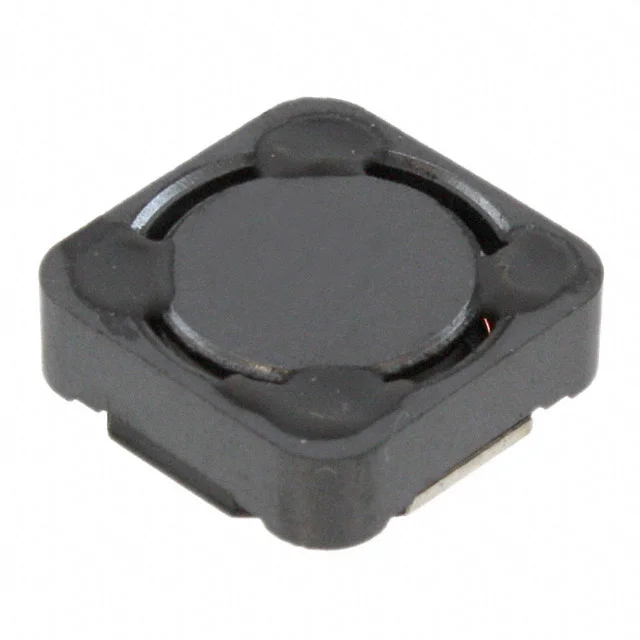

FIXED IND 100UH 1.25A 300 MOHM
| Inductance | 100 µH |
| Tolerance | ±20% |
| Current Rating | 1.25 A |
| DC Resistance (DCR) | 300mOhm Max |
| saturationCurrent | 1.2A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.492" L x 0.492" W (12.50mm x 12.50mm) |
| Case / Size | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 100UH 1.25A 300 MOHM |
| Series | PM124SH |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Shielded |
| qFactor | 14 @ 796kHz |
| selfResonantFreq | 8MHz |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.177" (4.50mm) |
| features | - |
