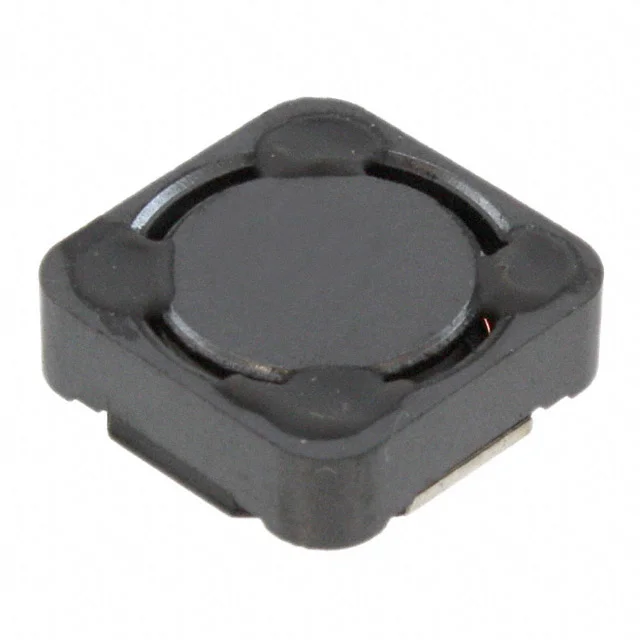

FIXED IND 27UH 2.55A 85 MOHM SMD
| Inductance | 27 µH |
| Tolerance | ±20% |
| Current Rating | 2.55 A |
| DC Resistance (DCR) | 85mOhm Max |
| saturationCurrent | 2.35A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.492" L x 0.492" W (12.50mm x 12.50mm) |
| Case / Size | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 27UH 2.55A 85 MOHM SMD |
| Series | PM124SH |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Shielded |
| qFactor | 16 @ 2.52MHz |
| selfResonantFreq | 15.5MHz |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.177" (4.50mm) |
| features | - |
