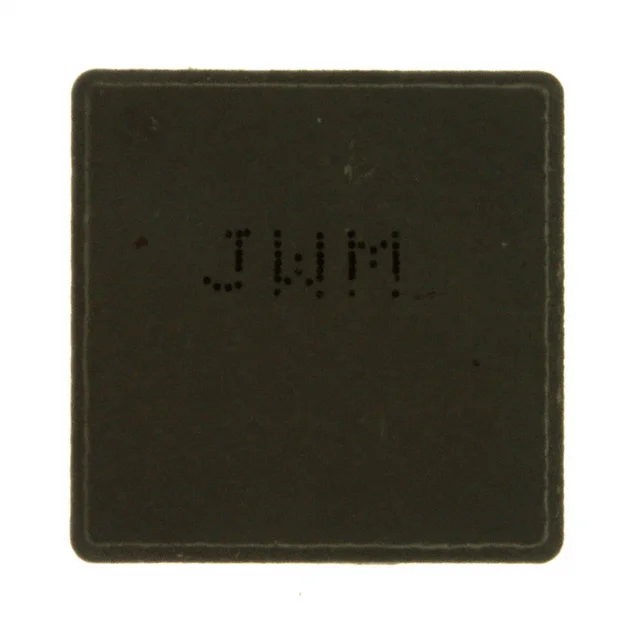

FIXED IND 500NH 36A 1.5 MOHM SMD
| Inductance | 500 nH |
| Tolerance | ±20% |
| Current Rating | 36 A |
| DC Resistance (DCR) | 1.5mOhm Max |
| saturationCurrent | 55A |
| Operating Temperature | -55°C ~ 150°C |
| Dimensions | 0.547" L x 0.531" W (13.90mm x 13.50mm) |
| Case / Size | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 500NH 36A 1.5 MOHM SMD |
| Series | PM12651S |
| productStatus | Last Time Buy |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Iron |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.232" (5.90mm) |
| features | - |
