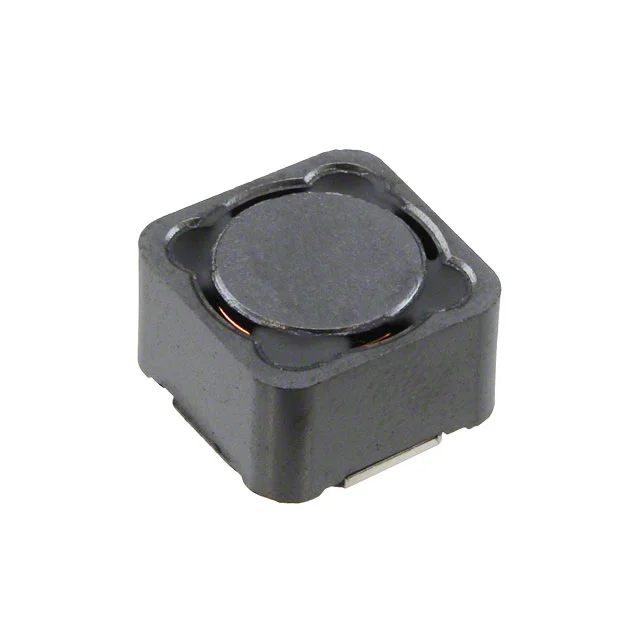

FIXED IND 12UH 5.6A 28 MOHM SMD
| Inductance | 12 µH |
| Tolerance | ±20% |
| Current Rating | 5.6 A |
| DC Resistance (DCR) | 28mOhm Max |
| saturationCurrent | 6.6A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.492" L x 0.492" W (12.50mm x 12.50mm) |
| Case / Size | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 12UH 5.6A 28 MOHM SMD |
| Series | PM127SH |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Shielded |
| qFactor | 26 @ 2.52MHz |
| selfResonantFreq | 15MHz |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.315" (8.00mm) |
| features | - |
