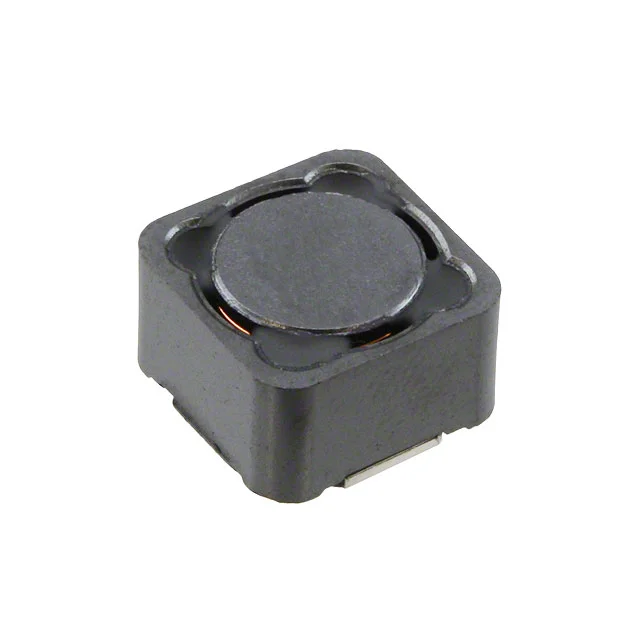

FIXED IND 1.2UH 9.8A 18 MOHM SMD
| Inductance | 1.2 µH |
| Tolerance | -20%, +40% |
| Current Rating | 9.8 A |
| DC Resistance (DCR) | 18mOhm Max |
| saturationCurrent | 9.8A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.492" L x 0.492" W (12.50mm x 12.50mm) |
| Case / Size | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 1.2UH 9.8A 18 MOHM SMD |
| Series | PM127SH |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Shielded |
| qFactor | 28 @ 7.96MHz |
| selfResonantFreq | 83MHz |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.315" (8.00mm) |
| features | - |
