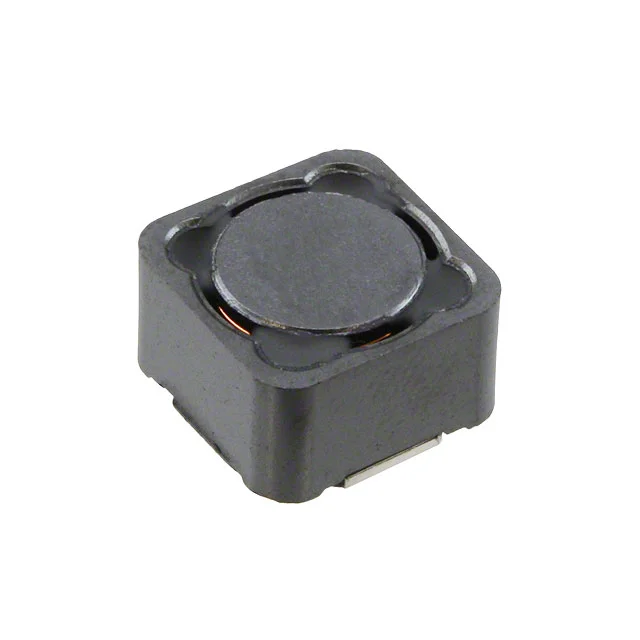

FIXED IND 68UH 2.4A 120 MOHM SMD
Understand the key electrical and mechanical specifications for PM127SH-680M-RC.
PM127SH-680M-RC has an inductance value of 68 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
PM127SH-680M-RC is rated for 2.4 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
PM127SH-680M-RC lists a DC resistance of 120mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
PM127SH-680M-RC uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Continue from PM127SH-680M-RC to manufacturer, series, and broader datasheet collections.
Can't find the original PDF? Magdir recommends the following compatible alternatives with matching specs.
| Inductance | 68 µH |
| Tolerance | ±20% |
| Current Rating | 2.4 A |
| DC Resistance (DCR) | 120mOhm Max |
| Saturation Current | 2.3A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.492" L x 0.492" W (12.50mm x 12.50mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 68UH 2.4A 120 MOHM SMD |
| Series | PM127SH |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Shielded |
| Q @ Frequency | 20 @ 2.52MHz |
| Self Resonant Frequency | 6.5MHz |
| Ratings | - |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | - |
| Height - Seated (Max) | 0.315" (8.00mm) |
| Features | - |
