Description

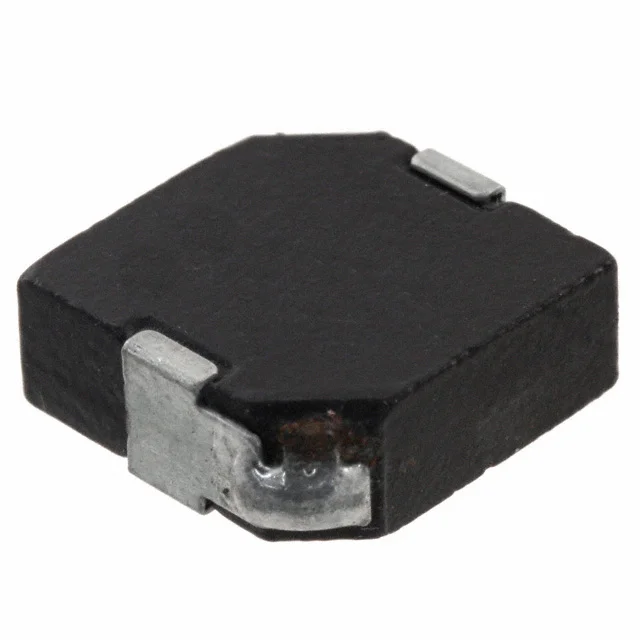

FIXED IND 1UH 25A 14.4 MOHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for PM13666S-1R0M.
PM13666S-1R0M has an inductance value of 1 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
PM13666S-1R0M is rated for 25 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
PM13666S-1R0M lists a DC resistance of 14.4mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
PM13666S-1R0M uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from PM13666S-1R0M to manufacturer, series, and broader datasheet collections.
Similar-specification candidates · Engineering review required
Screened against recorded construction, core, mounting, dimensions and current/DCR. Land pattern, test conditions and circuit compatibility still require validation.
Missing evidence or no candidates passed screening. A replacement cannot be determined; request a review of the original datasheets.
Product Attributes
| Inductance | 1 µH |
| Tolerance | ±20% |
| Current Rating | 25 A |
| DC Resistance (DCR) | 14.4mOhm Max |
| Operating Temperature | -40°C ~ 150°C |
| Dimensions | 0.547" L x 0.531" W (13.90mm x 13.50mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 1UH 25A 14.4 MOHM SMD |
| Series | PM13666S |
| Product Status | Obsolete |
| Type / Construction | Wirewound |
| Shielding | Shielded |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.232" (5.90mm) |
