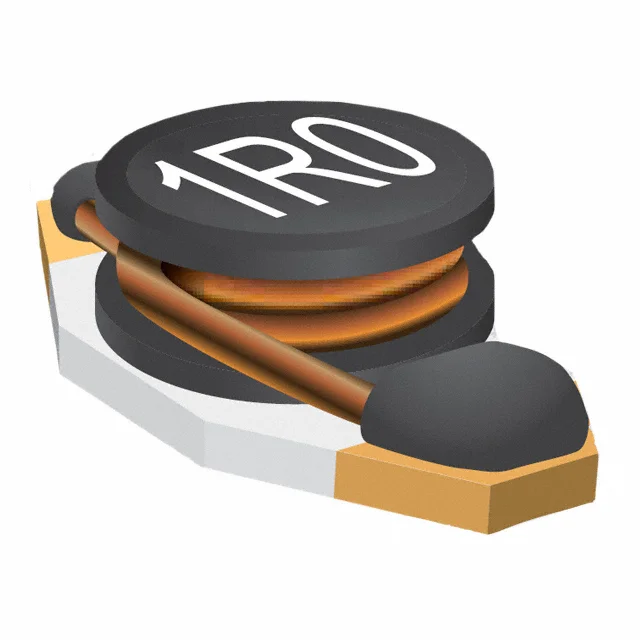

FIXED IND 15UH 1.2A 230 MOHM SMD
| Inductance | 15 µH |
| Tolerance | ±20% |
| Current Rating | 1.2 A |
| DC Resistance (DCR) | 230mOhm Max |
| saturationCurrent | 900mA |
| Operating Temperature | -40°C ~ 85°C |
| Dimensions | 0.260" L x 0.175" W (6.60mm x 4.45mm) |
| Case / Size | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 15UH 1.2A 230 MOHM SMD |
| Series | PM1608 |
| productStatus | Obsolete |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Unshielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.115" (2.92mm) |
