Description

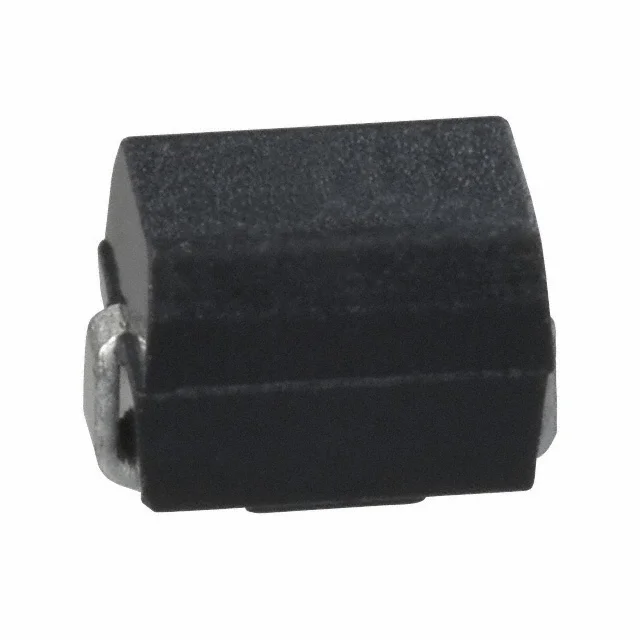

FIXED IND 22UH 180MA 3.2 OHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for PM1812-220J.
PM1812-220J has an inductance value of 22 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
PM1812-220J is rated for 180 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
PM1812-220J lists a DC resistance of 3.2Ohm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
PM1812-220J uses a package or case of 1812 (4532 Metric). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from PM1812-220J to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 22 µH |
| Tolerance | ±5% |
| Current Rating | 180 mA |
| DC Resistance (DCR) | 3.2Ohm Max |
| Operating Temperature | -40°C ~ 100°C |
| Dimensions | 0.177" L x 0.126" W (4.50mm x 3.20mm) |
| Case / Size | 1812 (4532 Metric) |
| Package / Case | 1812 (4532 Metric) |
| Supplier | Bourns Inc. |
| Description | FIXED IND 22UH 180MA 3.2 OHM SMD |
| Series | PM1812 |
| Product Status | Obsolete |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Q @ Frequency | 50 @ 2.52MHz |
| Self Resonant Frequency | 13MHz |
| Inductance Test Frequency | 2.52 MHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | 1812 |
| Height - Seated (Max) | 0.134" (3.40mm) |
