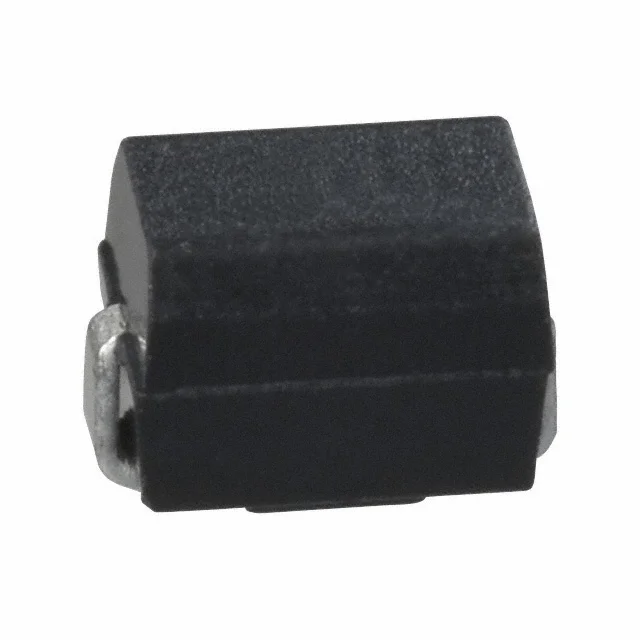

FIXED IND 330UH 85MA 14 OHM SMD
| Inductance | 330 µH |
| Tolerance | ±5% |
| Current Rating | 85 mA |
| DC Resistance (DCR) | 14Ohm Max |
| saturationCurrent | - |
| Operating Temperature | -40°C ~ 100°C |
| Dimensions | 0.177" L x 0.126" W (4.50mm x 3.20mm) |
| Case / Size | 1812 (4532 Metric) |
| Supplier | Bourns Inc. |
| Description | FIXED IND 330UH 85MA 14 OHM SMD |
| Series | PM1812 |
| productStatus | Obsolete |
| typeConstruction | - |
| coreMaterial | Ferrite |
| shielding | Unshielded |
| qFactor | 40 @ 796kHz |
| selfResonantFreq | 3.5MHz |
| ratings | - |
| testFrequency | 796 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | 1812 |
| heightMax | 0.134" (3.40mm) |
| features | - |
