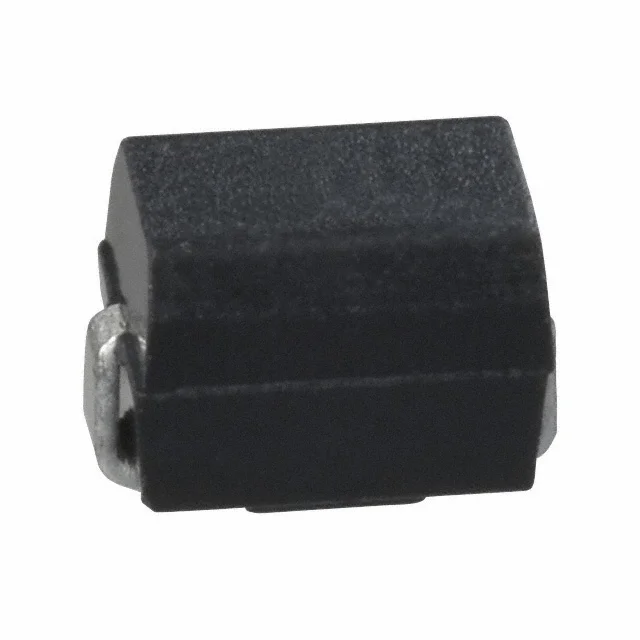

FIXED IND 6.8UH 285MA 1.2 OHM
| Inductance | 6.8 µH |
| Tolerance | ±5% |
| Current Rating | 285 mA |
| DC Resistance (DCR) | 1.2Ohm Max |
| saturationCurrent | - |
| Operating Temperature | -40°C ~ 100°C |
| Dimensions | 0.177" L x 0.126" W (4.50mm x 3.20mm) |
| Case / Size | 1812 (4532 Metric) |
| Supplier | Bourns Inc. |
| Description | FIXED IND 6.8UH 285MA 1.2 OHM |
| Series | PM1812 |
| productStatus | Obsolete |
| typeConstruction | - |
| coreMaterial | Ferrite |
| shielding | Unshielded |
| qFactor | 50 @ 7.96MHz |
| selfResonantFreq | 27MHz |
| ratings | - |
| testFrequency | 7.96 MHz |
| mountingType | Surface Mount |
| supplierDevicePackage | 1812 |
| heightMax | 0.134" (3.40mm) |
| features | - |
