Description

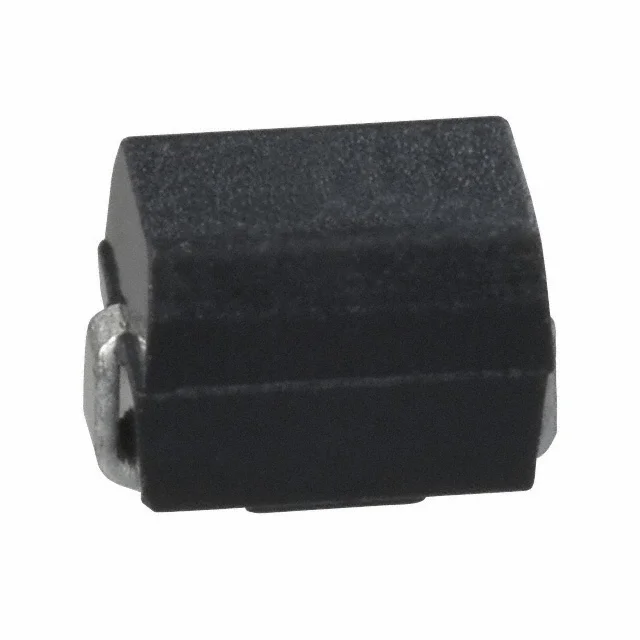

FIXED IND 680NH 500MA 400 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for PM1812-R68K.
PM1812-R68K has an inductance value of 680 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
PM1812-R68K is rated for 500 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
PM1812-R68K lists a DC resistance of 400mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
PM1812-R68K uses a package or case of 1812 (4532 Metric). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from PM1812-R68K to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 680 nH |
| Tolerance | ±10% |
| Current Rating | 500 mA |
| DC Resistance (DCR) | 400mOhm Max |
| Operating Temperature | -40°C ~ 100°C |
| Dimensions | 0.177" L x 0.126" W (4.50mm x 3.20mm) |
| Case / Size | 1812 (4532 Metric) |
| Package / Case | 1812 (4532 Metric) |
| Supplier | Bourns Inc. |
| Description | FIXED IND 680NH 500MA 400 MOHM |
| Series | PM1812 |
| Product Status | Obsolete |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Q @ Frequency | 40 @ 25.2MHz |
| Self Resonant Frequency | 135MHz |
| Inductance Test Frequency | 25.2 MHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | 1812 |
| Height - Seated (Max) | 0.134" (3.40mm) |
