Description

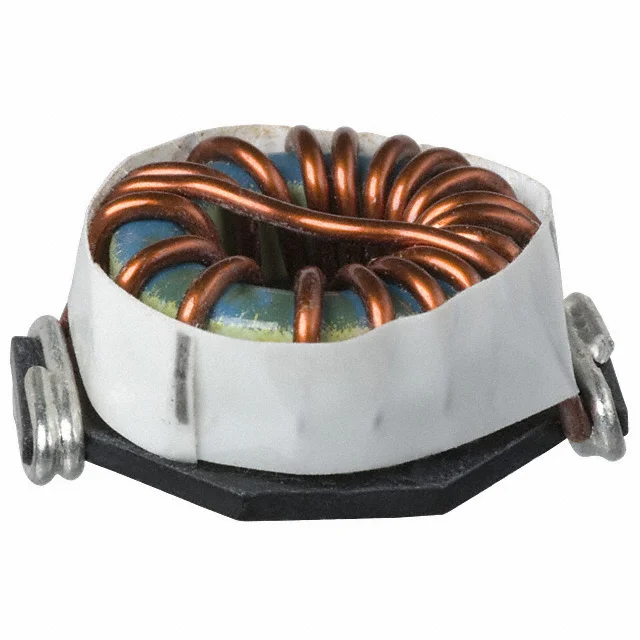

FIXED IND 150UH 4.3A 49 MOHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for PM2110-151K.
PM2110-151K has an inductance value of 150 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
PM2110-151K is rated for 4.3 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
PM2110-151K lists a DC resistance of 49mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
PM2110-151K uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from PM2110-151K to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 150 µH |
| Tolerance | ±10% |
| Current Rating | 4.3 A |
| DC Resistance (DCR) | 49mOhm Max |
| Operating Temperature | -55°C ~ 105°C |
| Dimensions | 1.201" L x 1.000" W (30.50mm x 25.40mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 150UH 4.3A 49 MOHM SMD |
| Series | PM2110 |
| Product Status | Obsolete |
| Type / Construction | Toroidal |
| Core Material | Iron |
| Shielding | Unshielded |
| Inductance Test Frequency | 1 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.590" (14.99mm) |
