Description

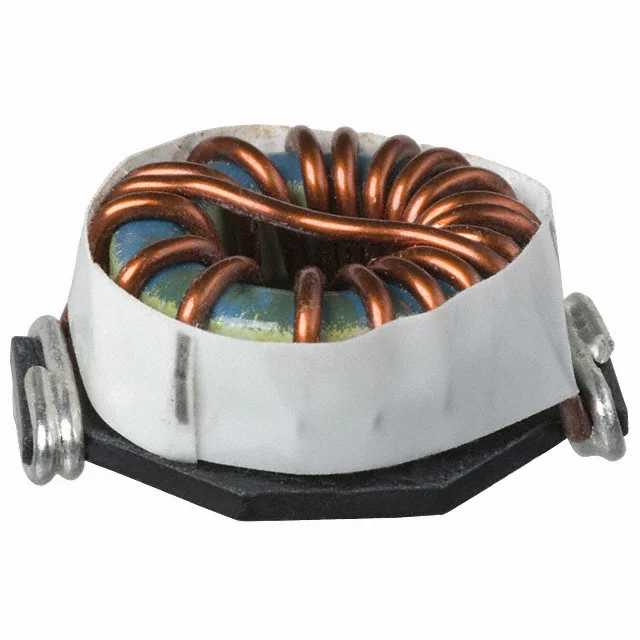

FIXED IND 18UH 10.2A 9 MOHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for PM2110-180K-RC.
PM2110-180K-RC has an inductance value of 18 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
PM2110-180K-RC is rated for 10.2 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
PM2110-180K-RC lists a DC resistance of 9mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
PM2110-180K-RC uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from PM2110-180K-RC to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 18 µH |
| Tolerance | ±10% |
| Current Rating | 10.2 A |
| DC Resistance (DCR) | 9mOhm Max |
| Operating Temperature | -55°C ~ 105°C |
| Dimensions | 1.201" L x 1.000" W (30.50mm x 25.40mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 18UH 10.2A 9 MOHM SMD |
| Series | PM2110 |
| Product Status | Active |
| Type / Construction | Toroidal |
| Core Material | Iron |
| Shielding | Unshielded |
| Inductance Test Frequency | 1 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.570" (14.48mm) |
