Description

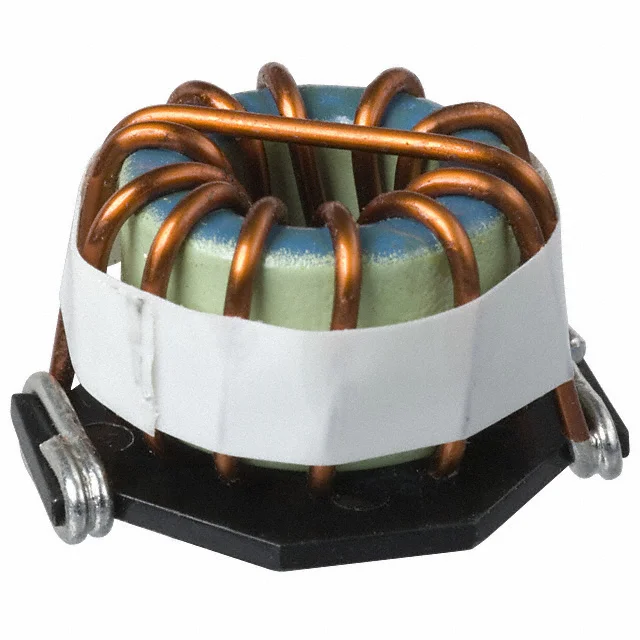

FIXED IND 180UH 5.3A 47 MOHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for PM2120-181K.
PM2120-181K has an inductance value of 180 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
PM2120-181K is rated for 5.3 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
PM2120-181K lists a DC resistance of 47mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
PM2120-181K uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from PM2120-181K to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 180 µH |
| Tolerance | ±10% |
| Current Rating | 5.3 A |
| DC Resistance (DCR) | 47mOhm Max |
| Operating Temperature | -55°C ~ 105°C |
| Dimensions | 1.201" L x 1.000" W (30.50mm x 25.40mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 180UH 5.3A 47 MOHM SMD |
| Series | PM2120 |
| Product Status | Obsolete |
| Type / Construction | Toroidal |
| Core Material | Iron |
| Shielding | Unshielded |
| Inductance Test Frequency | 1 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.830" (21.08mm) |
