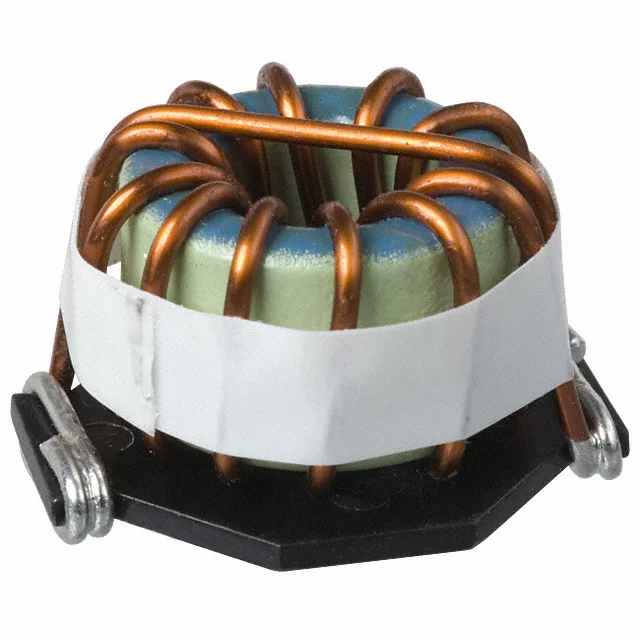

FIXED IND 82UH 6.4A 32 MOHM SMD
| Inductance | 82 µH |
| Tolerance | ±10% |
| Current Rating | 6.4 A |
| DC Resistance (DCR) | 32mOhm Max |
| saturationCurrent | - |
| Operating Temperature | -55°C ~ 105°C |
| Dimensions | 1.201" L x 1.000" W (30.50mm x 25.40mm) |
| Case / Size | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 82UH 6.4A 32 MOHM SMD |
| Series | PM2120 |
| productStatus | Obsolete |
| typeConstruction | Toroidal |
| coreMaterial | Iron |
| shielding | Unshielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 1 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.870" (22.10mm) |
| features | - |
