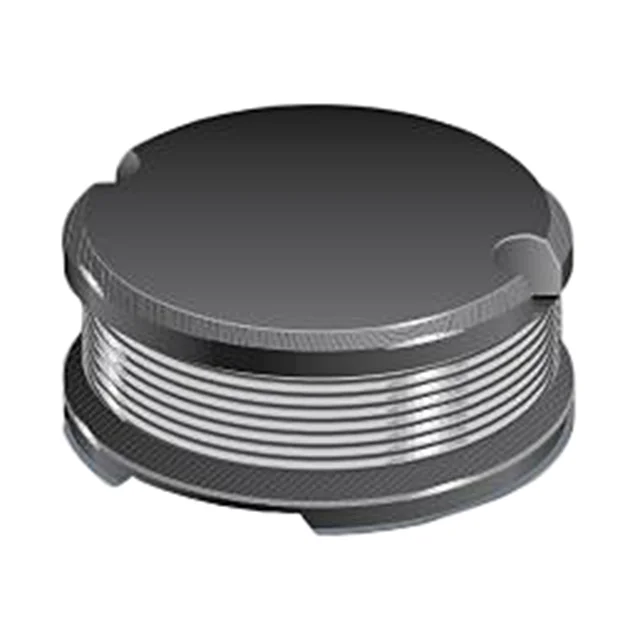

FIXED IND 1.8UH 1.8A 80 MOHM SMD
| Inductance | 1.8 µH |
| Tolerance | ±20% |
| Current Rating | 1.8 A |
| DC Resistance (DCR) | 80mOhm Max |
| saturationCurrent | 2A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.118" L x 0.110" W (3.00mm x 2.80mm) |
| Case / Size | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 1.8UH 1.8A 80 MOHM SMD |
| Series | PM32 |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Unshielded |
| qFactor | 23 @ 7.96MHz |
| selfResonantFreq | 85MHz |
| ratings | - |
| testFrequency | 1 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.110" (2.80mm) |
| features | - |
