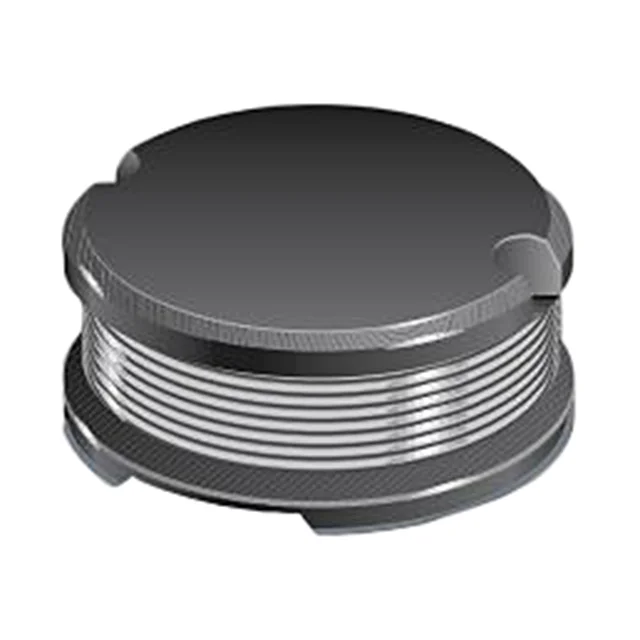

FIXED IND 22UH 520MA 660 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for PM32-220M-RC.
PM32-220M-RC has an inductance value of 22 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
PM32-220M-RC is rated for 520 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
PM32-220M-RC lists a DC resistance of 660mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
PM32-220M-RC uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from PM32-220M-RC to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 22 µH |
| Tolerance | ±20% |
| Current Rating | 520 mA |
| DC Resistance (DCR) | 660mOhm Max |
| Saturation Current | 650mA |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.118" L x 0.110" W (3.00mm x 2.80mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 22UH 520MA 660 MOHM |
| Series | PM32 |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Q @ Frequency | 23 @ 2.52MHz |
| Self Resonant Frequency | 22MHz |
| Inductance Test Frequency | 1 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.110" (2.80mm) |
