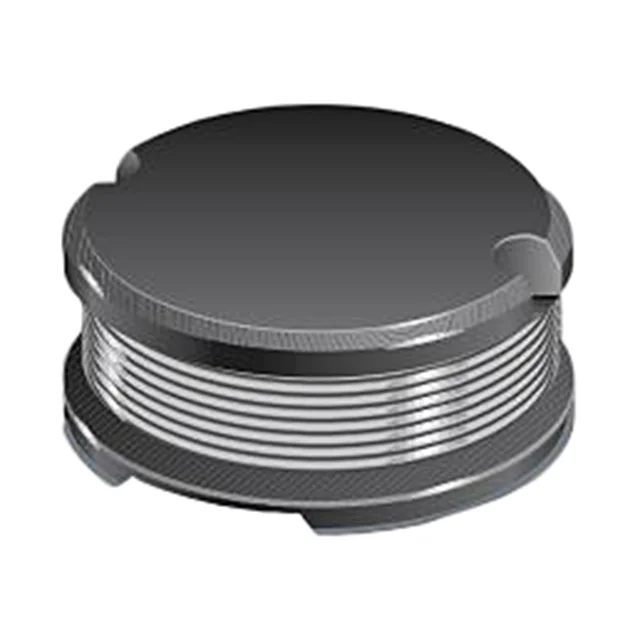

FIXED IND 68UH 300MA 1.85 OHM
| Inductance | 68 µH |
| Tolerance | ±20% |
| Current Rating | 300 mA |
| DC Resistance (DCR) | 1.85Ohm Max |
| saturationCurrent | 320mA |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.118" L x 0.110" W (3.00mm x 2.80mm) |
| Case / Size | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 68UH 300MA 1.85 OHM |
| Series | PM32 |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Unshielded |
| qFactor | 24 @ 2.52MHz |
| selfResonantFreq | 14MHz |
| ratings | - |
| testFrequency | 1 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.110" (2.80mm) |
| features | - |
