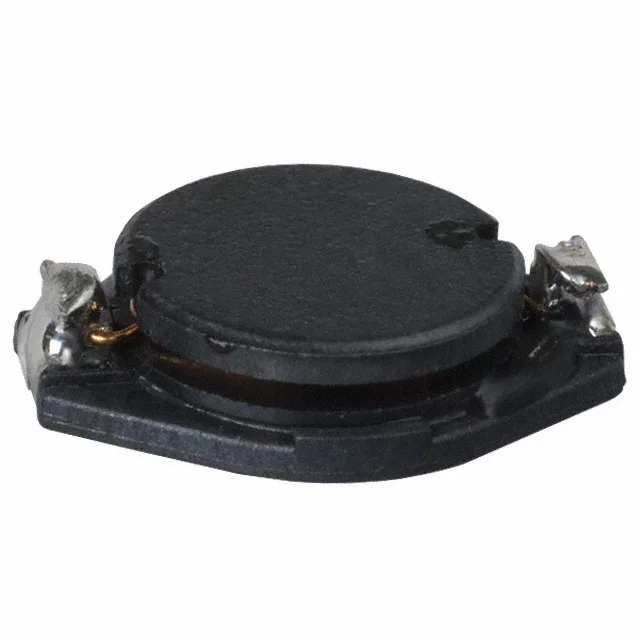

FIXED IND 100UH 600MA 800 MOHM
| Inductance | 100 µH |
| Tolerance | ±20% |
| Current Rating | 600 mA |
| DC Resistance (DCR) | 800mOhm Max |
| saturationCurrent | 700mA |
| Operating Temperature | -55°C ~ 125°C |
| Dimensions | 0.512" L x 0.374" W (13.00mm x 9.50mm) |
| Case / Size | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 100UH 600MA 800 MOHM |
| Series | PM3308 |
| productStatus | Obsolete |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Unshielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.118" (3.00mm) |
| features | - |
