Description

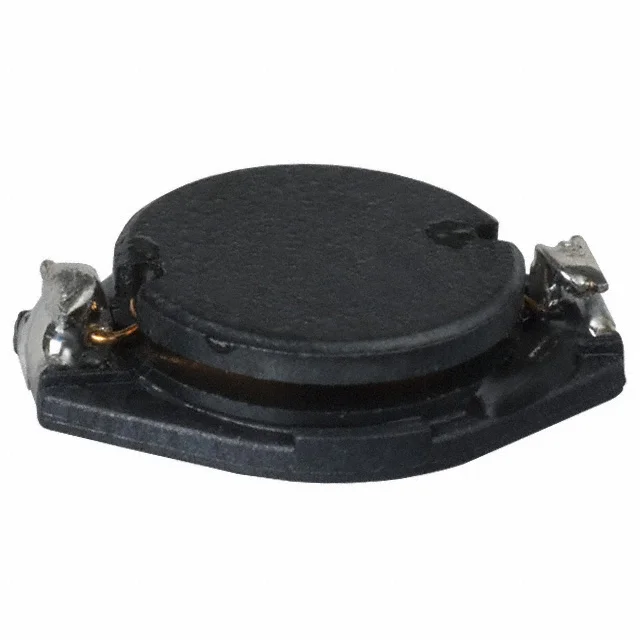

FIXED IND 330UH 300MA 2.7 OHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for PM3308-331M-RC.
PM3308-331M-RC has an inductance value of 330 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
PM3308-331M-RC is rated for 300 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
PM3308-331M-RC lists a DC resistance of 2.7Ohm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
PM3308-331M-RC uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from PM3308-331M-RC to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 330 µH |
| Tolerance | ±20% |
| Current Rating | 300 mA |
| DC Resistance (DCR) | 2.7Ohm Max |
| Saturation Current | 400mA |
| Operating Temperature | -55°C ~ 125°C |
| Dimensions | 0.512" L x 0.374" W (13.00mm x 9.50mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 330UH 300MA 2.7 OHM |
| Series | PM3308 |
| Product Status | Obsolete |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.118" (3.00mm) |
