Description

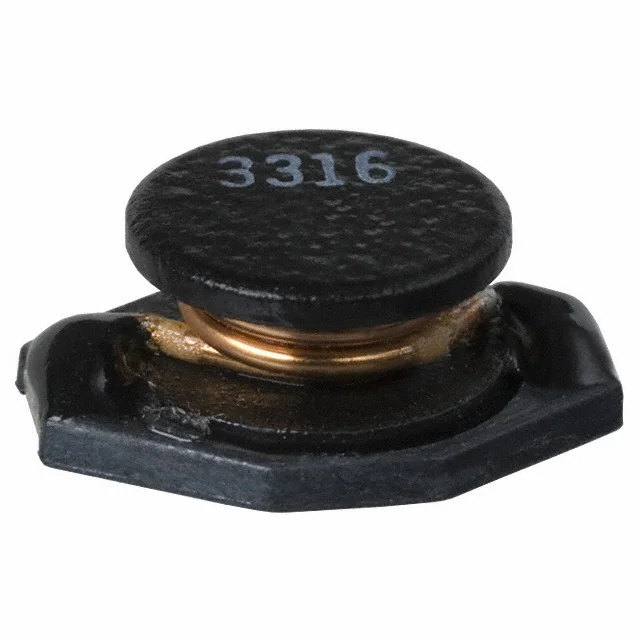

FIXED IND 1MH 300MA 3.9 OHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for PM3316-102M-RC.
PM3316-102M-RC has an inductance value of 1 mH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
PM3316-102M-RC is rated for 300 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
PM3316-102M-RC lists a DC resistance of 3.9Ohm. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
PM3316-102M-RC uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from PM3316-102M-RC to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 1 mH |
| Tolerance | ±20% |
| Current Rating | 300 mA |
| DC Resistance (DCR) | 3.9Ohm |
| Saturation Current | 350mA |
| Operating Temperature | -55°C ~ 125°C |
| Dimensions | 0.500" L x 0.394" W (12.70mm x 10.00mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 1MH 300MA 3.9 OHM SMD |
| Series | PM3316 |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Q @ Frequency | 81 @ 70kHz |
| Self Resonant Frequency | 2MHz |
| Inductance Test Frequency | 1 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.209" (5.30mm) |
