Description

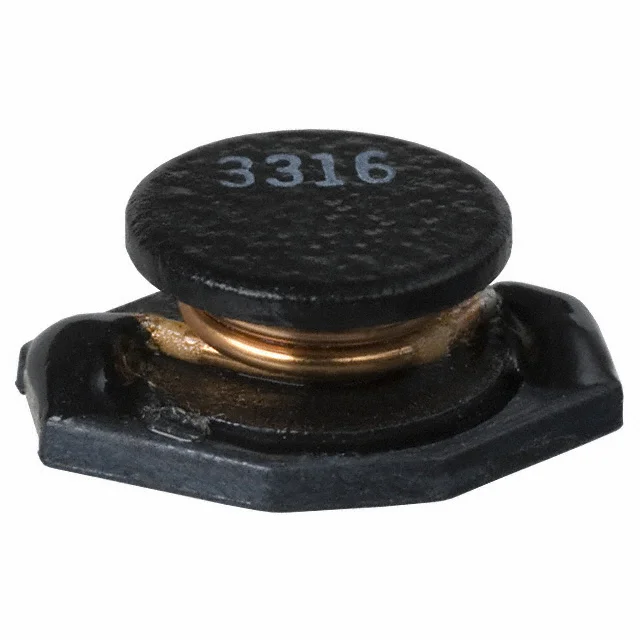

FIXED IND 1UH 6.8A 9 MOHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for PM3316-1R0M.
PM3316-1R0M has an inductance value of 1 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
PM3316-1R0M is rated for 6.8 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
PM3316-1R0M lists a DC resistance of 9mOhm. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
PM3316-1R0M uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from PM3316-1R0M to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 1 µH |
| Tolerance | ±20% |
| Current Rating | 6.8 A |
| DC Resistance (DCR) | 9mOhm |
| Saturation Current | 9A |
| Operating Temperature | -55°C ~ 105°C |
| Dimensions | 0.500" L x 0.394" W (12.70mm x 10.00mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 1UH 6.8A 9 MOHM SMD |
| Series | PM3316 |
| Product Status | Obsolete |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.209" (5.30mm) |
