Description

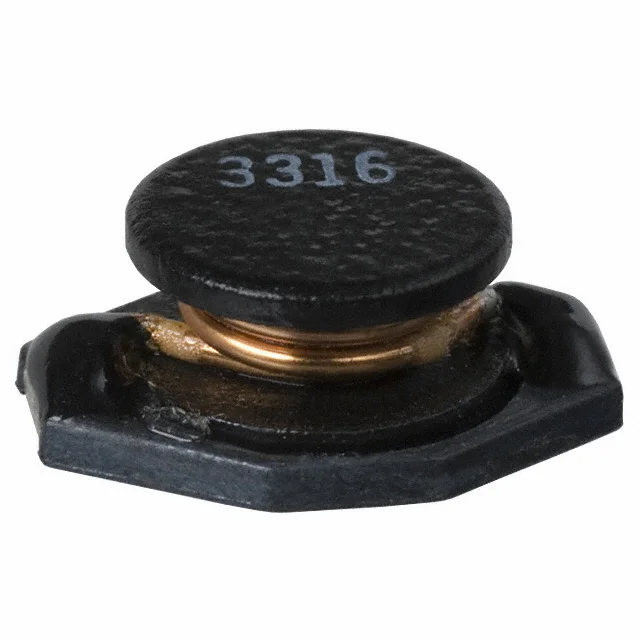

FIXED IND 220UH 800MA 610 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for PM3316-221M.
PM3316-221M has an inductance value of 220 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
PM3316-221M is rated for 800 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
PM3316-221M lists a DC resistance of 610mOhm. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
PM3316-221M uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from PM3316-221M to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 220 µH |
| Tolerance | ±20% |
| Current Rating | 800 mA |
| DC Resistance (DCR) | 610mOhm |
| Saturation Current | 800mA |
| Operating Temperature | -55°C ~ 105°C |
| Dimensions | 0.500" L x 0.394" W (12.70mm x 10.00mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 220UH 800MA 610 MOHM |
| Series | PM3316 |
| Product Status | Obsolete |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.209" (5.30mm) |
