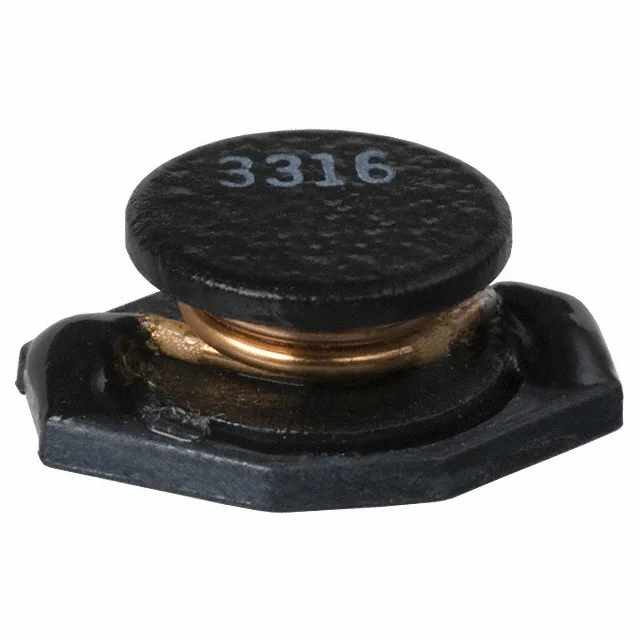

FIXED IND 330UH 600MA 1.02 OHM
| Inductance | 330 µH |
| Tolerance | ±20% |
| Current Rating | 600 mA |
| DC Resistance (DCR) | 1.02Ohm |
| saturationCurrent | 600mA |
| Operating Temperature | -55°C ~ 105°C |
| Dimensions | 0.500" L x 0.394" W (12.70mm x 10.00mm) |
| Case / Size | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 330UH 600MA 1.02 OHM |
| Series | PM3316 |
| productStatus | Obsolete |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Unshielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.209" (5.30mm) |
| features | - |
