Description

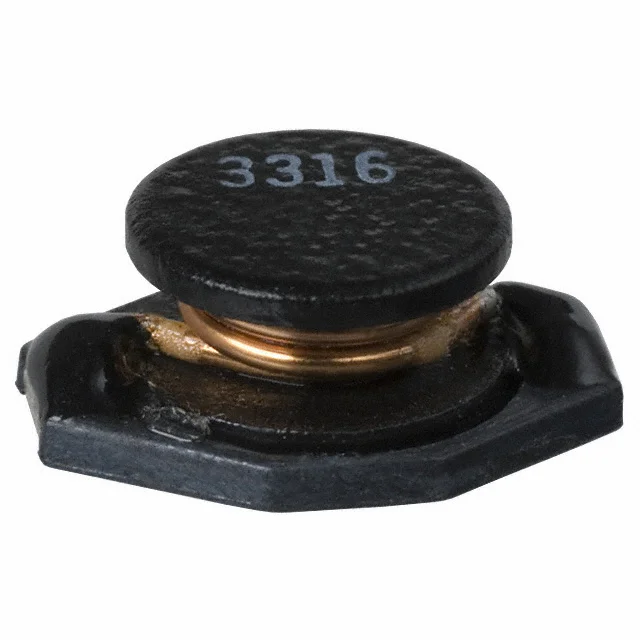

FIXED IND 3.3UH 5A 15 MOHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for PM3316-3R3M-RC.
PM3316-3R3M-RC has an inductance value of 3.3 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
PM3316-3R3M-RC is rated for 5 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
PM3316-3R3M-RC lists a DC resistance of 15mOhm. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
PM3316-3R3M-RC uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from PM3316-3R3M-RC to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 3.3 µH |
| Tolerance | ±20% |
| Current Rating | 5 A |
| DC Resistance (DCR) | 15mOhm |
| Saturation Current | 6.4A |
| Operating Temperature | -55°C ~ 125°C |
| Dimensions | 0.500" L x 0.394" W (12.70mm x 10.00mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 3.3UH 5A 15 MOHM SMD |
| Series | PM3316 |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Q @ Frequency | 50 @ 4MHz |
| Self Resonant Frequency | 54MHz |
| Inductance Test Frequency | 1 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.209" (5.30mm) |
