Description

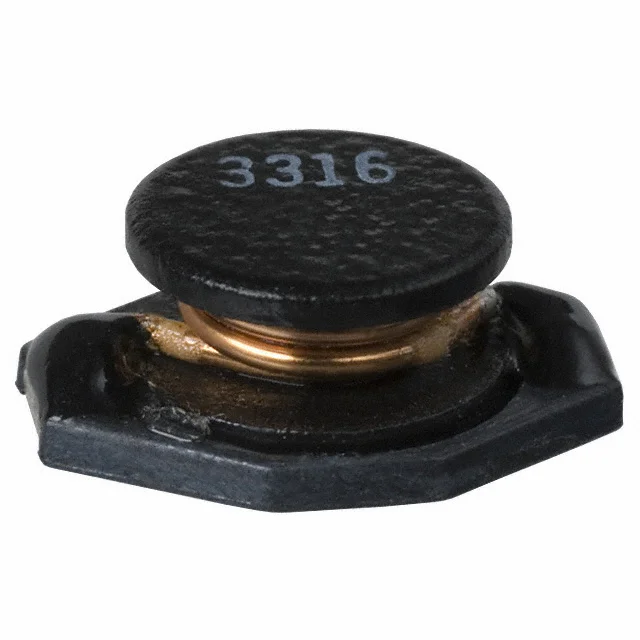

FIXED IND 4.7UH 4.8A 18 MOHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for PM3316-4R7M.
PM3316-4R7M has an inductance value of 4.7 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
PM3316-4R7M is rated for 4.8 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
PM3316-4R7M lists a DC resistance of 18mOhm. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
PM3316-4R7M uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from PM3316-4R7M to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 4.7 µH |
| Tolerance | ±20% |
| Current Rating | 4.8 A |
| DC Resistance (DCR) | 18mOhm |
| Saturation Current | 5.4A |
| Operating Temperature | -55°C ~ 105°C |
| Dimensions | 0.500" L x 0.394" W (12.70mm x 10.00mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 4.7UH 4.8A 18 MOHM SMD |
| Series | PM3316 |
| Product Status | Obsolete |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.209" (5.30mm) |
