Description

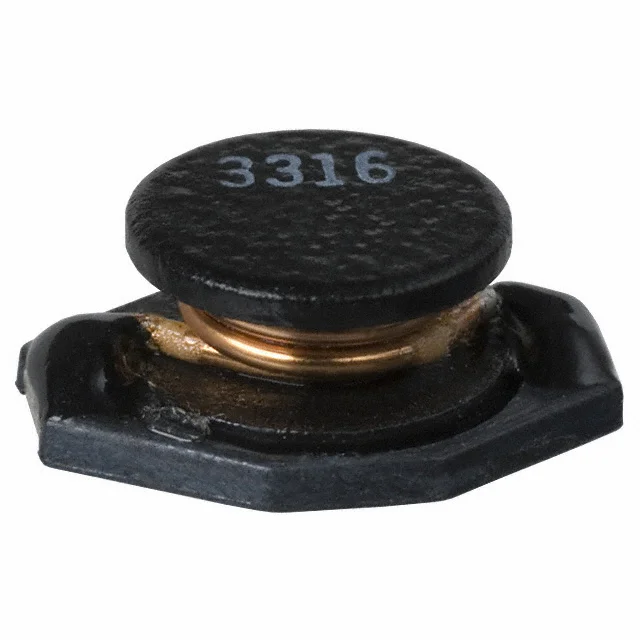

FIXED IND 680UH 400MA 2.02 OHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for PM3316-681M.
PM3316-681M has an inductance value of 680 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
PM3316-681M is rated for 400 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
PM3316-681M lists a DC resistance of 2.02Ohm. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
PM3316-681M uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from PM3316-681M to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 680 µH |
| Tolerance | ±20% |
| Current Rating | 400 mA |
| DC Resistance (DCR) | 2.02Ohm |
| Saturation Current | 400mA |
| Operating Temperature | -55°C ~ 105°C |
| Dimensions | 0.500" L x 0.394" W (12.70mm x 10.00mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 680UH 400MA 2.02 OHM |
| Series | PM3316 |
| Product Status | Obsolete |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.209" (5.30mm) |
