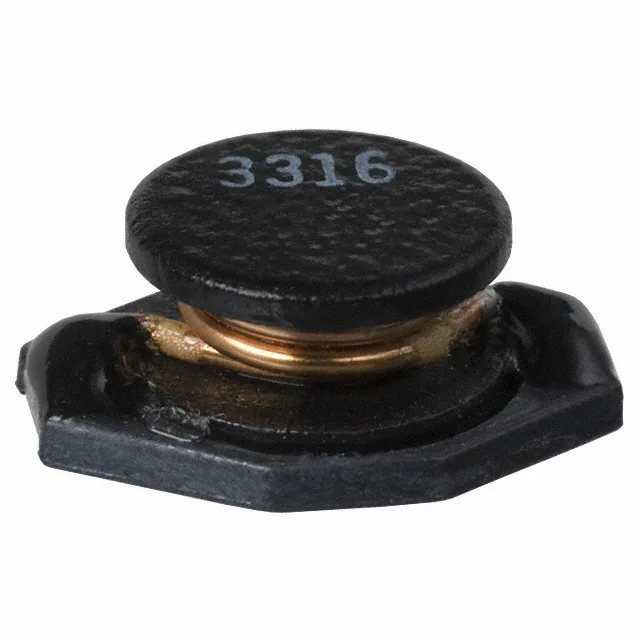

Description
FIXED IND 6.8UH 3.4A 30 MOHM SMD
Specifications
Inductance
6.8 µH
Current Rating
3.4 A
DC Resistance (DCR)
30mOhm
Dimensions
0.500" L x 0.394" W (12.70mm x 10.00mm)
Product Attributes
Manufacturer Verified
Last verified: 5/6/2026| Inductance | 6.8 µH |
| Tolerance | ±20% |
| Current Rating | 3.4 A |
| DC Resistance (DCR) | 30mOhm |
| saturationCurrent | 4.5A |
| Operating Temperature | -55°C ~ 125°C |
| Dimensions | 0.500" L x 0.394" W (12.70mm x 10.00mm) |
| Case / Size | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 6.8UH 3.4A 30 MOHM SMD |
| Series | PM3316 |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Unshielded |
| qFactor | 50 @ 3MHz |
| selfResonantFreq | 31MHz |
| ratings | - |
| testFrequency | 1 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.209" (5.30mm) |
| features | - |
