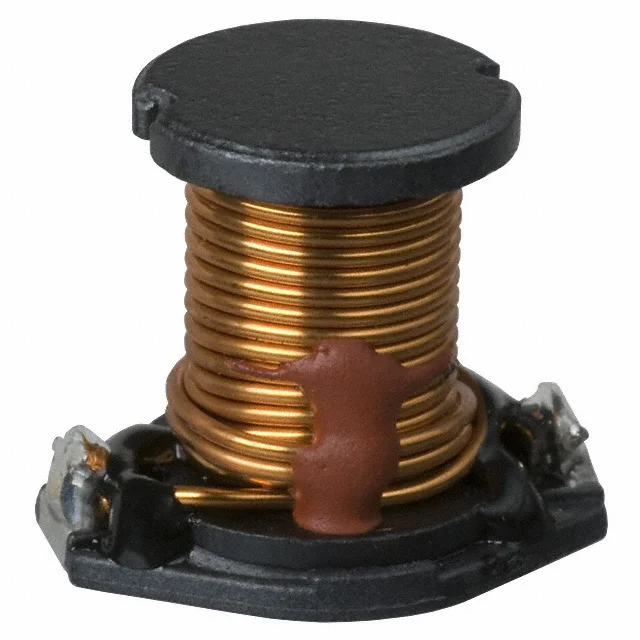

PM3340-221M-RC
Bourns Inc.
Description
FIXED IND 220UH 700MA 440 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for PM3340-221M-RC.
PM3340-221M-RC has an inductance value of 220 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
PM3340-221M-RC is rated for 700 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
PM3340-221M-RC lists a DC resistance of 440mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
PM3340-221M-RC uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from PM3340-221M-RC to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 220 µH |
| Tolerance | ±20% |
| Current Rating | 700 mA |
| DC Resistance (DCR) | 440mOhm Max |
| Saturation Current | 1.6A |
| Operating Temperature | -55°C ~ 105°C |
| Dimensions | 0.512" L x 0.402" W (13.00mm x 10.20mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 220UH 700MA 440 MOHM |
| Series | PM3340 |
| Product Status | Obsolete |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.453" (11.50mm) |
