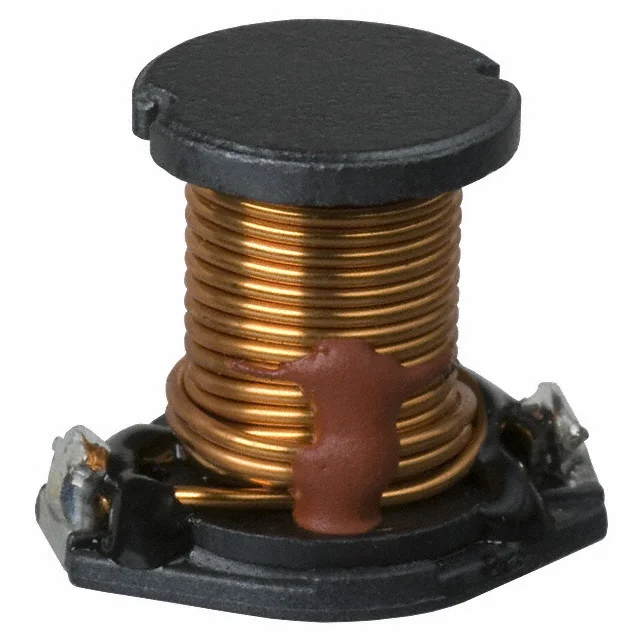

FIXED IND 470UH 300MA 950 MOHM
| Inductance | 470 µH |
| Tolerance | ±20% |
| Current Rating | 300 mA |
| DC Resistance (DCR) | 950mOhm Max |
| saturationCurrent | 1A |
| Operating Temperature | -55°C ~ 105°C |
| Dimensions | 0.512" L x 0.402" W (13.00mm x 10.20mm) |
| Case / Size | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 470UH 300MA 950 MOHM |
| Series | PM3340 |
| productStatus | Obsolete |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Unshielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.453" (11.50mm) |
| features | - |
