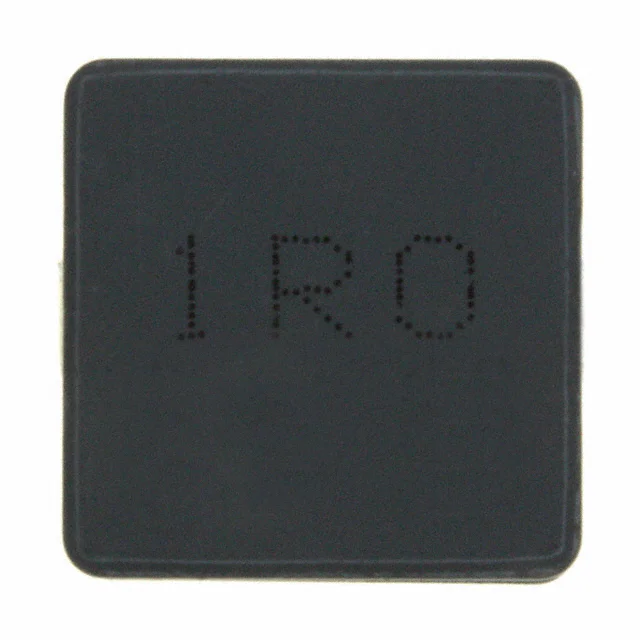

Description
FIXED IND 12UH 560MA 210 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for PM42S-120.
PM42S-120 has an inductance value of 12 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
PM42S-120 is rated for 560 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
PM42S-120 lists a DC resistance of 210mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
PM42S-120 uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from PM42S-120 to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 12 µH |
| Tolerance | ±30% |
| Current Rating | 560 mA |
| DC Resistance (DCR) | 210mOhm Max |
| Operating Temperature | -30°C ~ 100°C |
| Dimensions | 0.189" L x 0.189" W (4.80mm x 4.80mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 12UH 560MA 210 MOHM |
| Series | PM42S |
| Product Status | Obsolete |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Shielded |
| Inductance Test Frequency | 10 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.079" (2.00mm) |
