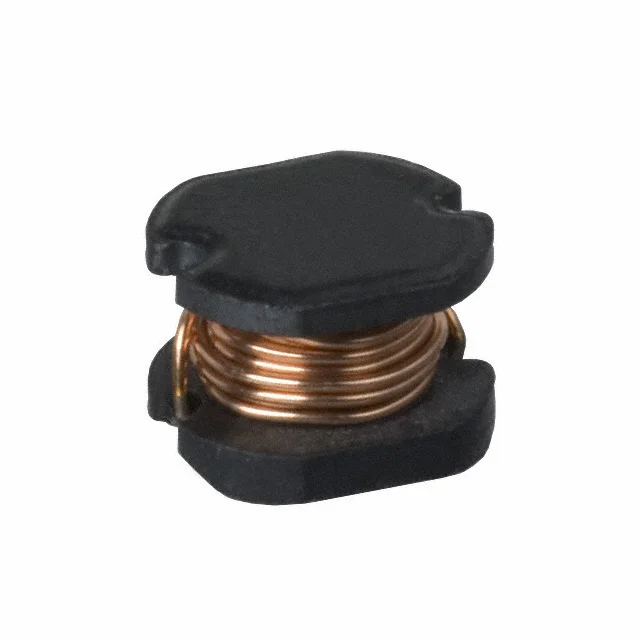

FIXED IND 8.2UH 1.26A 130 MOHM
| Inductance | 8.2 µH |
| Tolerance | ±20% |
| Current Rating | 1.26 A |
| DC Resistance (DCR) | 130mOhm Max |
| saturationCurrent | 1.9A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.177" L x 0.157" W (4.50mm x 4.00mm) |
| Case / Size | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 8.2UH 1.26A 130 MOHM |
| Series | PM43 |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Unshielded |
| qFactor | 28 @ 7.96MHz |
| selfResonantFreq | 36MHz |
| ratings | - |
| testFrequency | 1 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.138" (3.50mm) |
| features | - |
