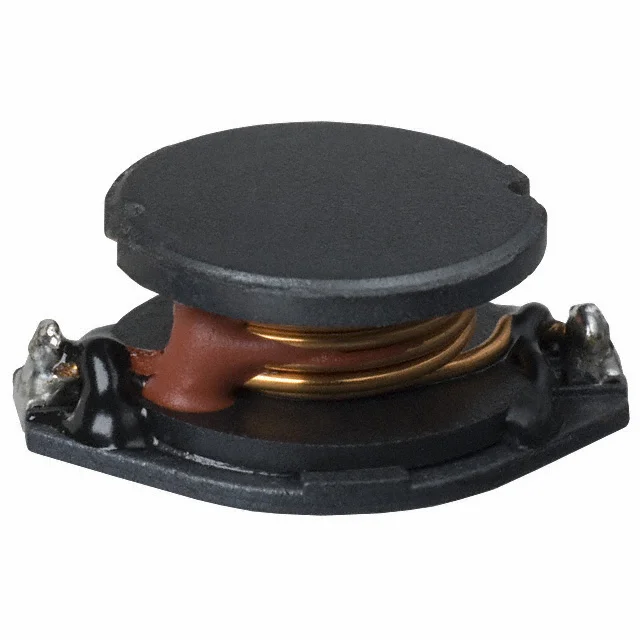

FIXED IND 100UH 1.7A 190 MOHM
| Inductance | 100 µH |
| Tolerance | ±10% |
| Current Rating | 1.7 A |
| DC Resistance (DCR) | 190mOhm Max |
| saturationCurrent | 3.2A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.720" L x 0.551" W (18.30mm x 14.00mm) |
| Case / Size | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 100UH 1.7A 190 MOHM |
| Series | PM5022 |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Unshielded |
| qFactor | 25 @ 7MHz |
| selfResonantFreq | 796kHz |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.272" (6.90mm) |
| features | - |
