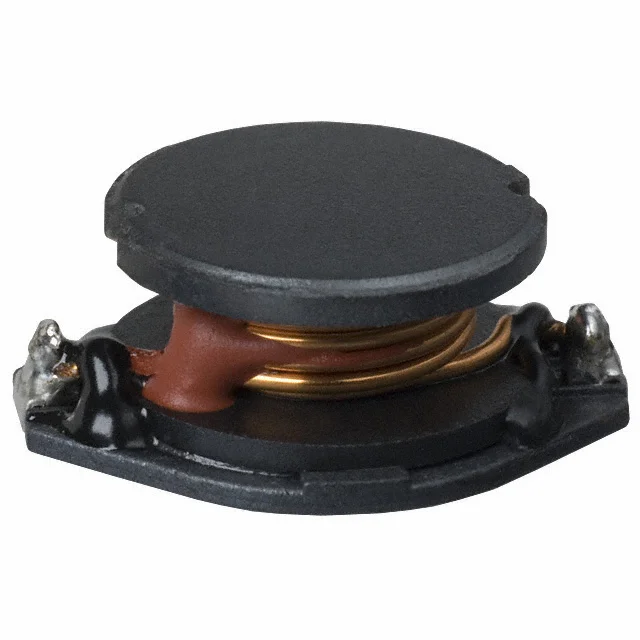

FIXED IND 100UH 1.7A 190 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for PM5022-101M.
PM5022-101M has an inductance value of 100 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
PM5022-101M is rated for 1.7 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
PM5022-101M lists a DC resistance of 190mOhm. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
PM5022-101M uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from PM5022-101M to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 100 µH |
| Tolerance | ±20% |
| Current Rating | 1.7 A |
| DC Resistance (DCR) | 190mOhm |
| Saturation Current | 3.2A |
| Operating Temperature | -55°C ~ 105°C |
| Dimensions | 0.720" L x 0.551" W (18.30mm x 14.00mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 100UH 1.7A 190 MOHM |
| Series | PM5022 |
| Product Status | Obsolete |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.272" (6.90mm) |
