Description

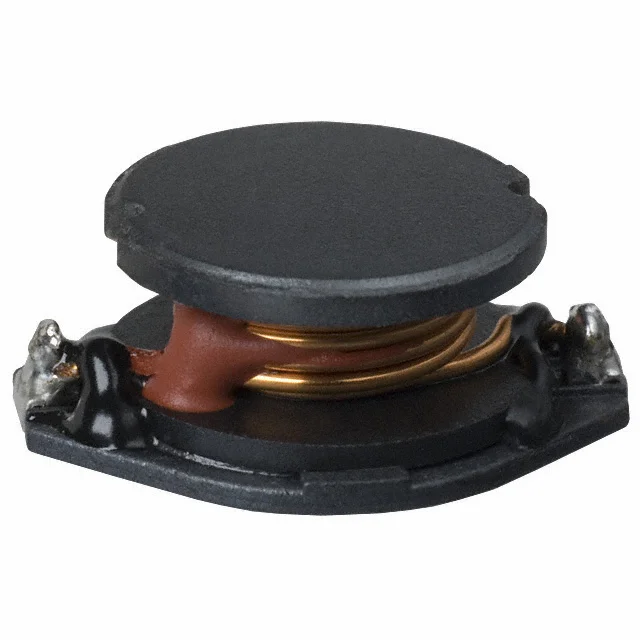

FIXED IND 1MH 500MA 1.8 OHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for PM5022-102M.
PM5022-102M has an inductance value of 1 mH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
PM5022-102M is rated for 500 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
PM5022-102M lists a DC resistance of 1.8Ohm. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
PM5022-102M uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from PM5022-102M to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 1 mH |
| Tolerance | ±20% |
| Current Rating | 500 mA |
| DC Resistance (DCR) | 1.8Ohm |
| Saturation Current | 1A |
| Operating Temperature | -55°C ~ 105°C |
| Dimensions | 0.720" L x 0.551" W (18.30mm x 14.00mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 1MH 500MA 1.8 OHM SMD |
| Series | PM5022 |
| Product Status | Obsolete |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.272" (6.90mm) |
