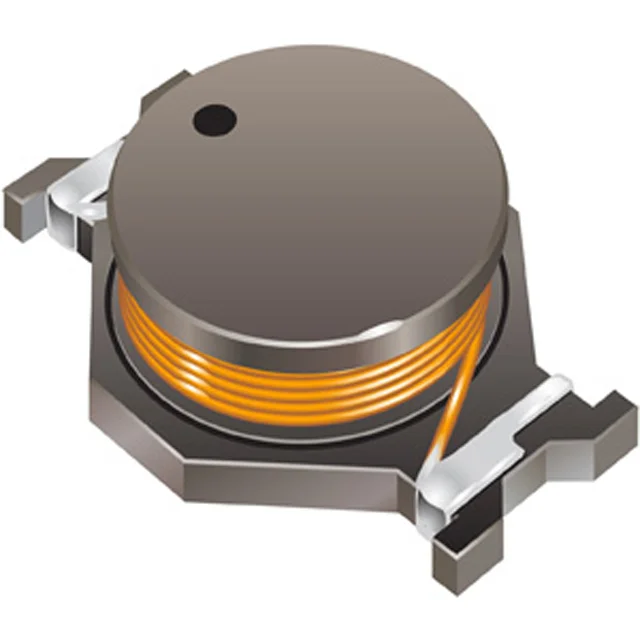

FIXED IND 3.3UH 9A 7.8 MOHM SMD
| Inductance | 3.3 µH |
| Tolerance | ±20% |
| Current Rating | 9 A |
| DC Resistance (DCR) | 7.8mOhm |
| saturationCurrent | 17A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.866" L x 0.591" W (22.00mm x 15.00mm) |
| Case / Size | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 3.3UH 9A 7.8 MOHM SMD |
| Series | PM5022H |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Unshielded |
| qFactor | 38 @ 3MHz |
| selfResonantFreq | 39MHz |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.307" (7.80mm) |
| features | - |
