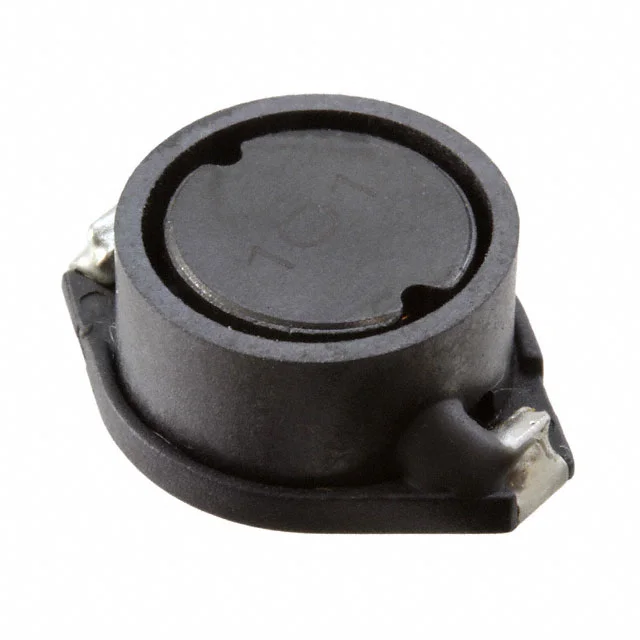

FIXED IND 1MH 530MA 2.01 OHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for PM5022S-102M.
PM5022S-102M has an inductance value of 1 mH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
PM5022S-102M is rated for 530 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
PM5022S-102M lists a DC resistance of 2.01Ohm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
PM5022S-102M uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from PM5022S-102M to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 1 mH |
| Tolerance | ±20% |
| Current Rating | 530 mA |
| DC Resistance (DCR) | 2.01Ohm Max |
| Saturation Current | 800mA |
| Operating Temperature | -40°C ~ 85°C |
| Dimensions | 0.732" L x 0.602" W (18.60mm x 15.30mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 1MH 530MA 2.01 OHM SMD |
| Series | PM5022S |
| Product Status | Obsolete |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Shielded |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.299" (7.60mm) |
