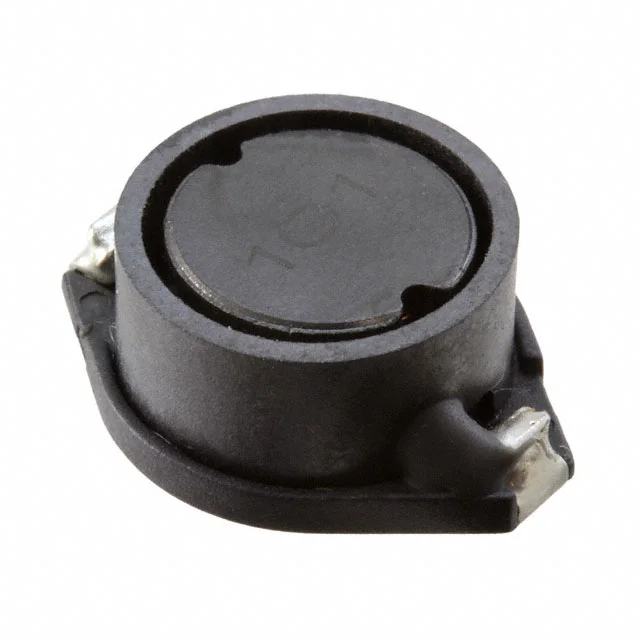

FIXED IND 15UH 3.4A 48 MOHM SMD
| Inductance | 15 µH |
| Tolerance | ±20% |
| Current Rating | 3.4 A |
| DC Resistance (DCR) | 48mOhm Max |
| saturationCurrent | 7A |
| Operating Temperature | -40°C ~ 85°C |
| Dimensions | 0.732" L x 0.602" W (18.60mm x 15.30mm) |
| Case / Size | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 15UH 3.4A 48 MOHM SMD |
| Series | PM5022S |
| productStatus | Obsolete |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.299" (7.60mm) |
