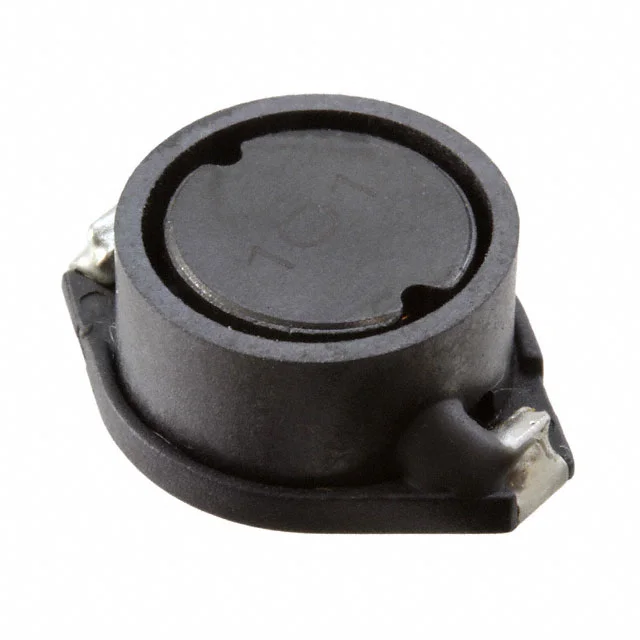

FIXED IND 220UH 1A 510 MOHM SMD
| Inductance | 220 µH |
| Tolerance | ±20% |
| Current Rating | 1 A |
| DC Resistance (DCR) | 510mOhm |
| saturationCurrent | 1.9A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.720" L x 0.551" W (18.30mm x 14.00mm) |
| Case / Size | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 220UH 1A 510 MOHM SMD |
| Series | PM5022S |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Shielded |
| qFactor | 29 @ 796kHz |
| selfResonantFreq | 3.5MHz |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.280" (7.10mm) |
