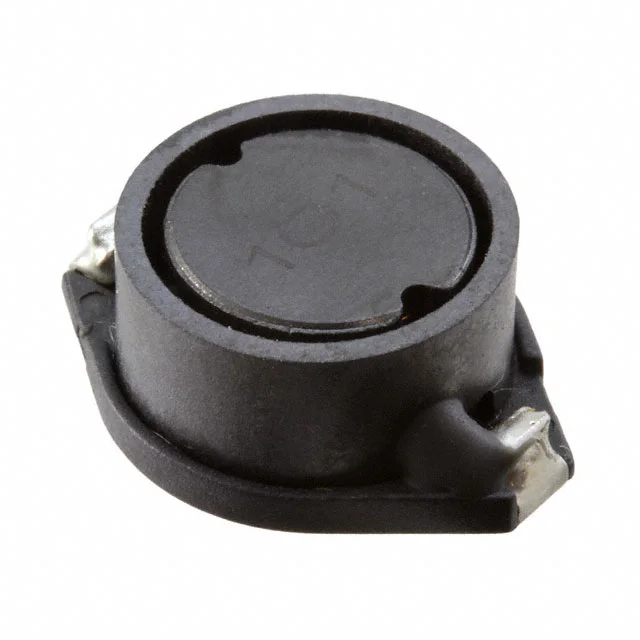

FIXED IND 330UH 800MA 790 MOHM
| Inductance | 330 µH |
| Tolerance | ±20% |
| Current Rating | 800 mA |
| DC Resistance (DCR) | 790mOhm |
| saturationCurrent | 1.4A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.720" L x 0.551" W (18.30mm x 14.00mm) |
| Case / Size | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 330UH 800MA 790 MOHM |
| Series | PM5022S |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Shielded |
| qFactor | 30 @ 796kHz |
| selfResonantFreq | 3MHz |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.280" (7.10mm) |
| features | - |
