Description

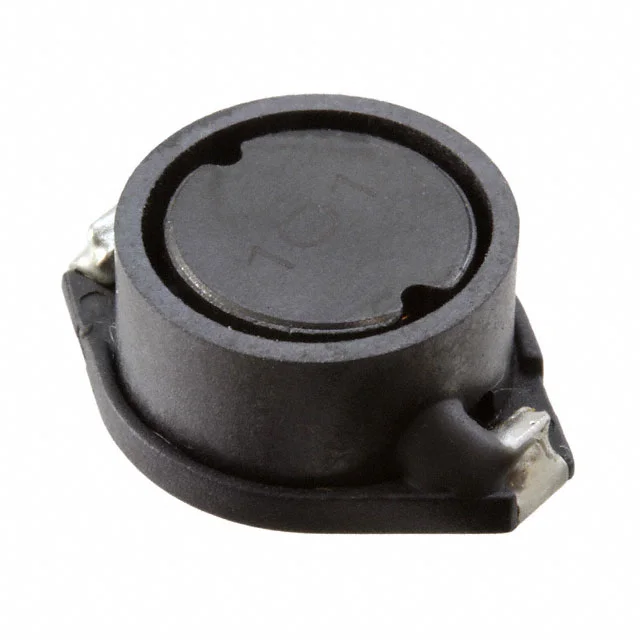

FIXED IND 470UH 730MA 1.08 OHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for PM5022S-471M.
PM5022S-471M has an inductance value of 470 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
PM5022S-471M is rated for 730 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
PM5022S-471M lists a DC resistance of 1.08Ohm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
PM5022S-471M uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from PM5022S-471M to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 470 µH |
| Tolerance | ±20% |
| Current Rating | 730 mA |
| DC Resistance (DCR) | 1.08Ohm Max |
| Saturation Current | 1.1A |
| Operating Temperature | -40°C ~ 85°C |
| Dimensions | 0.732" L x 0.602" W (18.60mm x 15.30mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 470UH 730MA 1.08 OHM |
| Series | PM5022S |
| Product Status | Obsolete |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Shielded |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.299" (7.60mm) |
